pfSense、OPNsense配置Clash代理教程

Clash一款强大的本地HTTP/HTTPS/SOCKS代理软件,内置DNS服务器,可以最大限度减少DNS污染,支持DoH/DoT上游DNS。可以基于域、GEOIP、IP-CIDR或进程名称规则将数据包路由到不同目的地。代理组允许用户制定灵活的规则,支持自动回退、负载均衡或基于延迟自动选择远程代理节点。Clash提供了基于Freebsd平台运行的程序,本文介绍在pfSense和OPNsense上安装Clash并设置透明代理的方法。

如果有海外VPS,推荐使用Sing-box一键四协议共存脚本,能直接提供clash.meta核心使用的Clash配置文件。

本教程所使用的防火墙为pfSense plus 24.03和OPNsense24.7_1。在配置clash之前,请先按正常步骤配置防火墙,确保各项功能正常使用。

本文使用Clash Meta(mihomo)内核代理clash,该内核还在持续更新当中。

安装clash

请参阅以下教程:

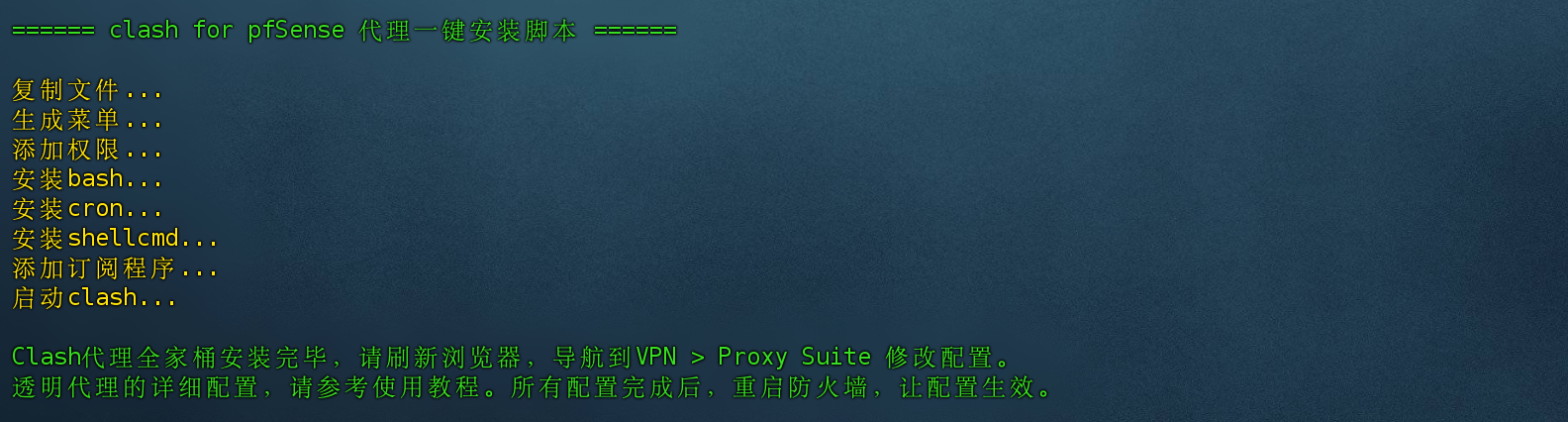

安装完成如下图所示:

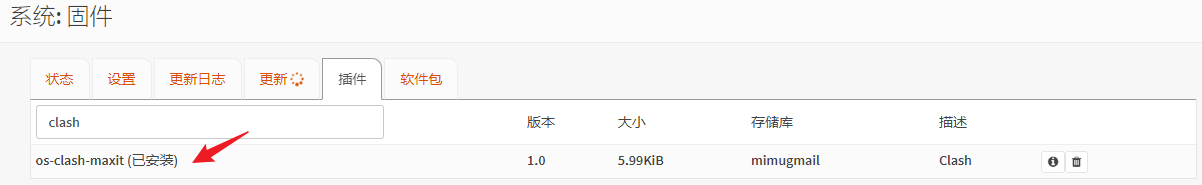

OPNsense的clash控制界面

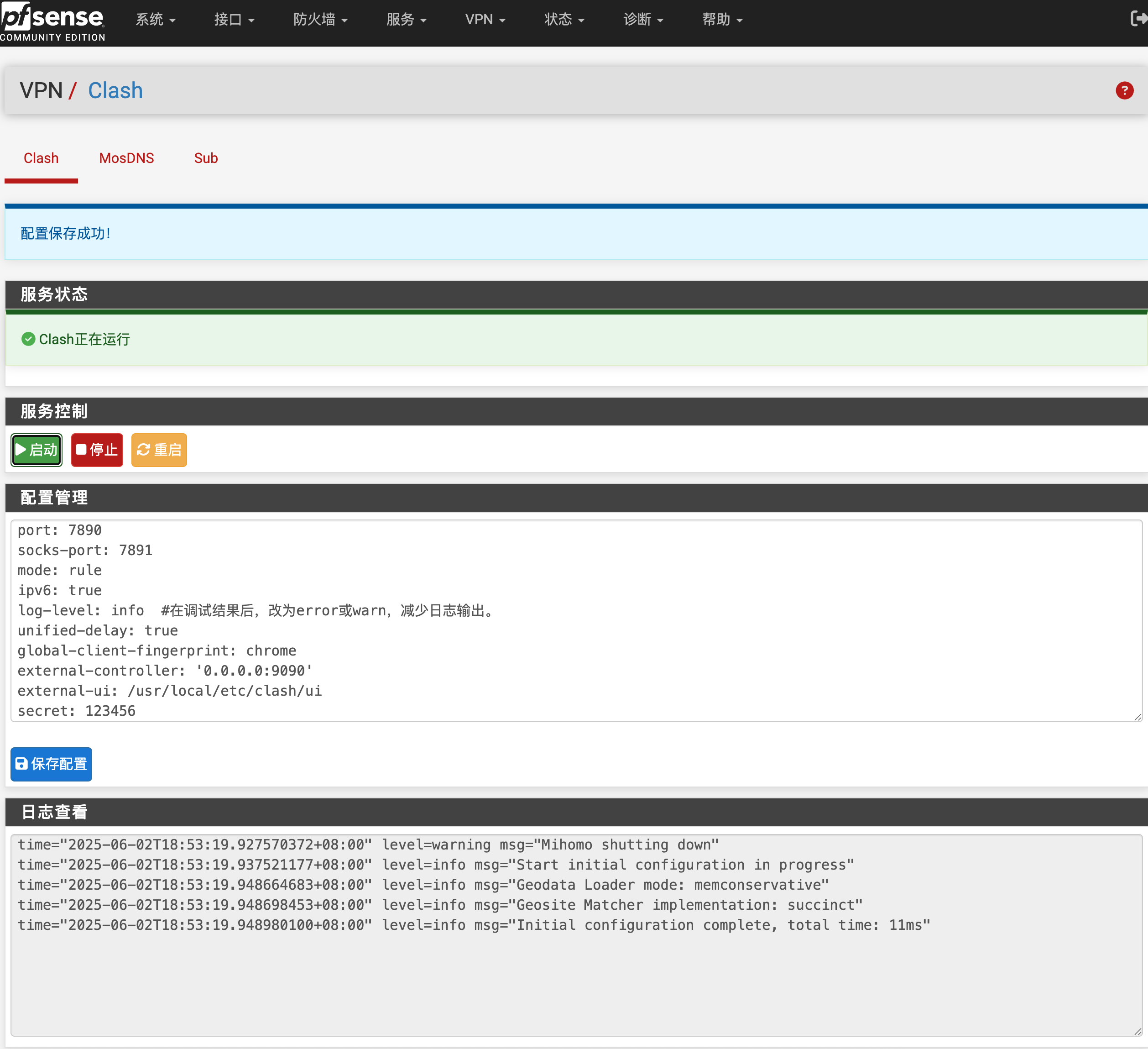

pfSense的clash控制界面

修改配置

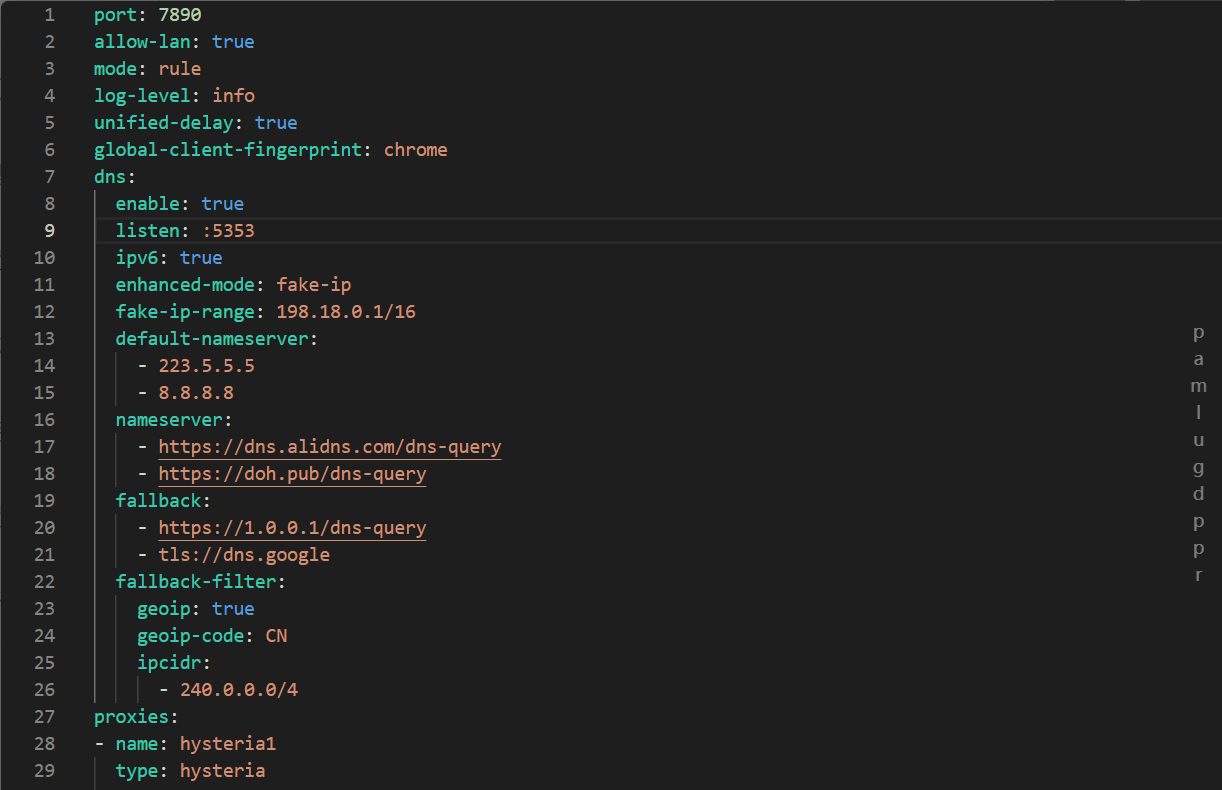

下载文末附件并解压缩,修改config.yaml配置。从支持Clash Meta核心的客户端程序(如:ClashNClash Verge等)导出所使用机场的配置文件,保留http和socks代理端口设置,如下图所示:

port: 7890
socks-port: 7891
allow-lan: true
mode: rule
ipv6: true
log-level: info
unified-delay: true
global-client-fingerprint: chrome
external-controller: '0.0.0.0:9090'
external-ui: /usr/local/etc/clash/ui
external_ui_download_url: 'https://github.com/MetaCubeX/metacubexd/archive/refs/heads/gh-pages.zip'
external_ui_download_detour: 'proxy'
secret: 123456
dns:
enable: true
listen: :1053
ipv6: true
enhanced-mode: fake-ip
fake-ip-range: 198.18.0.1/16
default-nameserver:
- 223.5.5.5
- 8.8.8.8
nameserver:
- https://dns.alidns.com/dns-query
- https://doh.pub/dns-query
fallback:
- https://1.0.0.1/dns-query
- tls://dns.google
fallback-filter:
geoip: true
geoip-code: CN
ipcidr:
- 240.0.0.0/4

proxies:

allow-lan参数设置为true,以允许防火墙的客户端使用代理。为了使用Clash仪表面板,需要设置仪表面板访问地址、下载地址和安全密钥。如果想使用OPNsense的Unbound DNS进行DNS查询(阻止黑名单功能),可以将default-nameserver项设置为127.0.0.1(在使用透明代理后,可能存在国内国外IP全局出站的情况)。listen的值不能与防火墙DNS默认监听端口冲突。

注意:在pfSense和OPNsnes上,clash(mihomo)不支持使用tun模式。

订阅管理

安装脚本自带了本地订阅功能,订阅程序来自github。请按以下方法进行操作:

修改订阅地址

打开sub/env文件(安装后位置:/usr/local/etc/clash/sub/env),输入自己机场的订阅地址,根据需要修改安全密钥。

修改模板文件

修改sub/sub/temp/templete文件(安装后位置:/usr/local/etc/clash/sub/temp/templete_config.yaml),参照示例修改clash配置文件除proxies的部分,注意不要添加socks-port: 7891条目,订阅程序会自动添加。

测试订阅功能

运行以下命令,检查订阅功能:

sub

订阅成功,如下图所示:

如果订阅不成功,就会出现下图的出错提示:

自动更新订阅

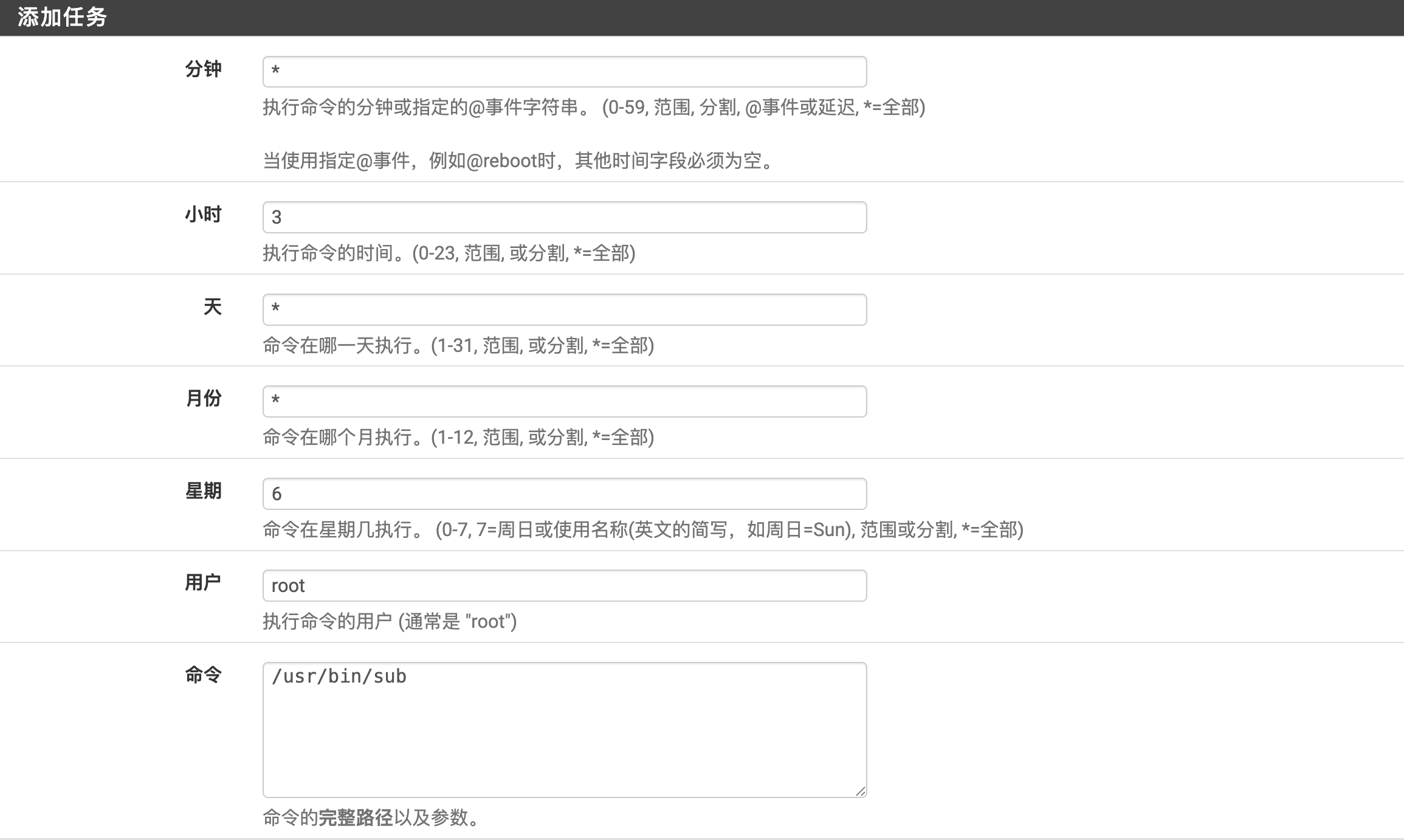

pfSense需要安装cron插件,然后导航到服务>cron,添加一个定时任务,命令格式为/usr/bin/sub,时间根据需要设置。如下图所示,表示每周六的凌晨3点自动更新订阅。

OPNsesne无需安装插件,导航到系统>设置>任务,添加Clash Subscription Updates任务,时间根据需要设置。如下图所示,表示每周六的凌晨3点自动更新订阅。

注意事项

  • 更新订阅会自动替换clash所使用的配置文件并重启clash服务。
  • 部分机场采用了加密链接,可能无法获取订阅文件。
  • 建议使用sublinkX搭建节点订阅系统,可以将自建节点和机场放入一个订阅链接进行订阅。

仪表面板

如果config.yaml当中包括了clash仪表面板的设置信息,在程序运行以后,就可以通过仪表面板查看代理连接信息。

仪表面板访问地址:http://LAN地址:9090/ui,默认安全密钥为123456,可以修改config.yaml中“secret”的值进行更改。

测试代理

Windows系统按以下方法添加http代理:点击左下角搜索图标,输入“代理服务器设置”,点击打开,选择手动设置代理,http代理按下图设置:

socks代理按下图设置:

设好代理并保存以后,测试是否能正常访问google、youtube等网站,访问ip111.cn,检查分流设置是否正常。

透明代理

由于mihomo在freebsd中未提供对tun的完全支持,在pfSense、OPNsense防火墙上实现透明代理请参阅以下文章:

附件下载
